commutator\ komutator\ kolektor for motor from China manufacturer

$commutator\ komutator\ kolektor for motor$

commutator\ komutator\ kolektor for motor

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


Add to Basket	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Riser type\ tang type

Production Capacity: 100 million/year

Delivery Date: 30 working days

Insulation between bars: Mica

Bushing: Steel,brass and spiral

Means of Transport: Ocean,Land,Air

Packing: carton

commutator bars: Silver-bearing copper

Moulding compound: Phenolic

Reinforced rings: Steel or glass epoxy

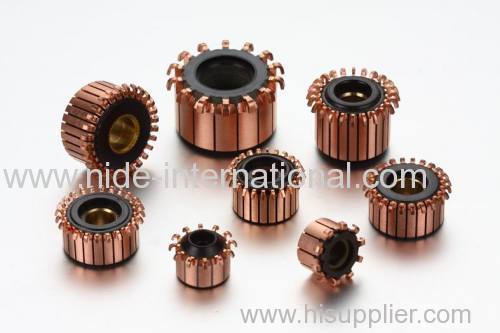

NIDE is specialized in researching,developing and manufacturing slot,hook and flat types of commutator for DC motors and universal motors.

commutator, komutator, kolektor for motor

commutator for automotive motor

commutator for power tools

commutator for household applicances

commutator for industrial motor

Part No.	Bar No.	O.D(D)	I.D(d)	Bar Length(L1)	Total Length(L)	Hook Height(D1)
NDG980	83	75.44	28.58	28.85		28.85
NDG787	75	98	26	30	99	36
NDG766A	75	85.3	32	50.6	100.3	54.1
NDB278	72	81	25	50	100.5	50
NDB777	69	85.85	33.31	42.65	109.4	50.1
NDG792	67	94.2	23	45	120	50
NDG705	66	81.61	28.58	37.06	81.61	37.06
NDG743	66	81.61	28.58	37.06	81.61	38.56
NDG726	66	81.6	28.58	32.1	81.6	40
NDB774	65	98	30	72	120	74
NDB238	65	95	30	47	126	55
NDG959A	65	81.61	28.58	24.4	81.61	30.15
NDB851	65	81	32	47	104	51.5
NDB889	65	81	32	35	104	39.5
NDG739	65	74.55	28.65	62.5	100.2	68.6
NDG764	63	85.5	35	75	97.5	81
NDB822A	57	77.7	30.175	38.9	89.2	48.5
NDG712	57	74.8	28.5	44.5	100.5	50.5
NDG904B	57	74.55	28.54	37.3	91.8	43.4
NDG701	57	74.5	28.556	62.5	92.2	68.6
NDG733	57	74.45	28.54	44.5	91.7	50.5
NDG706	56	75.44	28.58	37.74	75.44	38.74
NDG998A	55	75.5	28.575	29.21	75.5	31.24
NDB875	53	84	34.03	57	92	57
NDB280	49	81.5	32	79	111.5	81.5
NDG729	49	74.7	28.54	65	105.2	70.6
NDG736	47	81.9	30	49	101.6	54
NDG715	47	74.5	28.5	63.9	105	70
NDG731	47	74.45	28.54	37.4	91.7	43.4
NDG732	47	74.45	28.54	44.5	91.7	50.5
NDG735	45	84.9	30	60.3	105	66
NDG856	37	76.8	28.575	67.5	94.5	77.1
NDG704	37	74.6	28.54	37.4	82.7	43.4
NDG728	37	74.55	28.54	44.45	92.2	50.55
